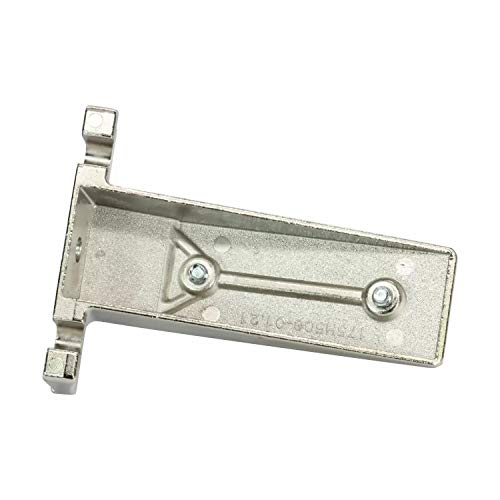

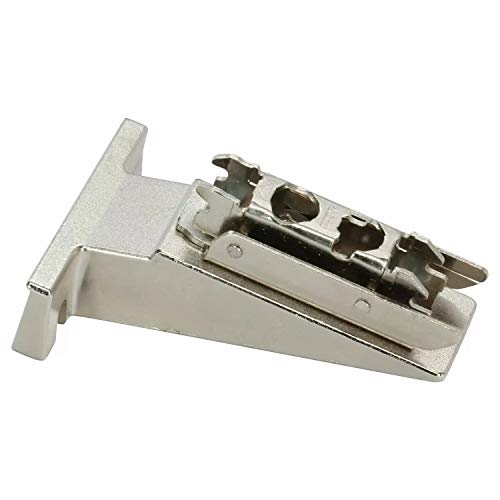

Blum 175H5030.21 9mm Inset Face Frame Adapter Plate, Cam Adj Height, Screw-on

Features:

• Cam height adjustment of plus or minus 2 mm.
• 9mm Inset Face Frame Adapter Plate
• Inline Mounting Plate
• Use with half-cranked hinges only. 170° hinges not recommended
• Packaged by Dexter Group corp in Dexter Group branded packaging

PartNumber: 175H5030.21

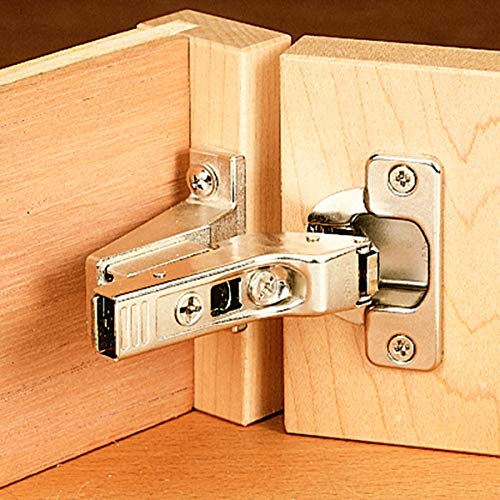

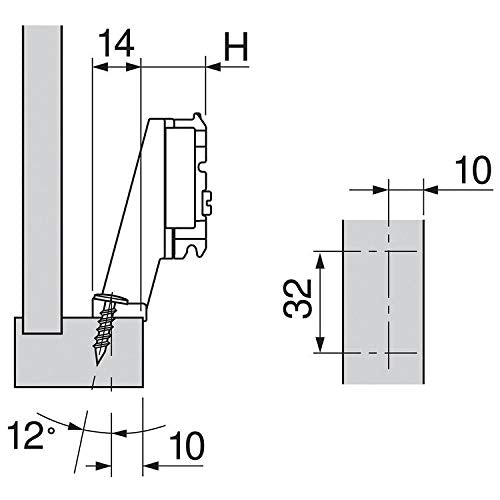

Details: Description CLIP Top Collection CLIP Top Inset Face Frame Adapter with 9mm Clearance Adapter plates are an alternate installation type that you can use instead of mounting plates. With your choice of adapter plate, you can control minimum clearance, installation type, and even what type of screws to use. Not recommended for 170 Degree hinges. Cam height adjustment of +/- 2 mm. Use with half-cranked hinges only. Mounting plate system: CLIP Mounting plate shape: horizontal Spacing: 9 mm Material: Steel Surface: Nickel-plated Bottom part surface: Zinc-coated Special mounting vertical hole Face frame construction Mounting: Wood screws Distance between mounting locations: 32 mm Distance cabinet front edge to first mounting location: 10 mm Diameter of mounting holes: 3 mm Boring depth of mounting holes: 10 mm Mounting plates height adjustment: with camx Plate Type: Face Frame Adaptor Attach with 3/4 wood truss head screws (not included) Adjustment: Cam Adjustable Made in: Made in: Austria Blum, Inc. is a #1 leading manufacturer of functional hardware for the kitchen cabinet and commercial casework industries specializing in lift systems, concealed hinges and drawer runner systems with Lifetime warranty Packaging: Packed by: Dexter Group corp. Trademarks Blum and the Blum Logo are trademarks of Blum Inc. Dexter Group and the Dexter Group Logo are trademarks of Dexter group corp

Model: 175H5030.21
